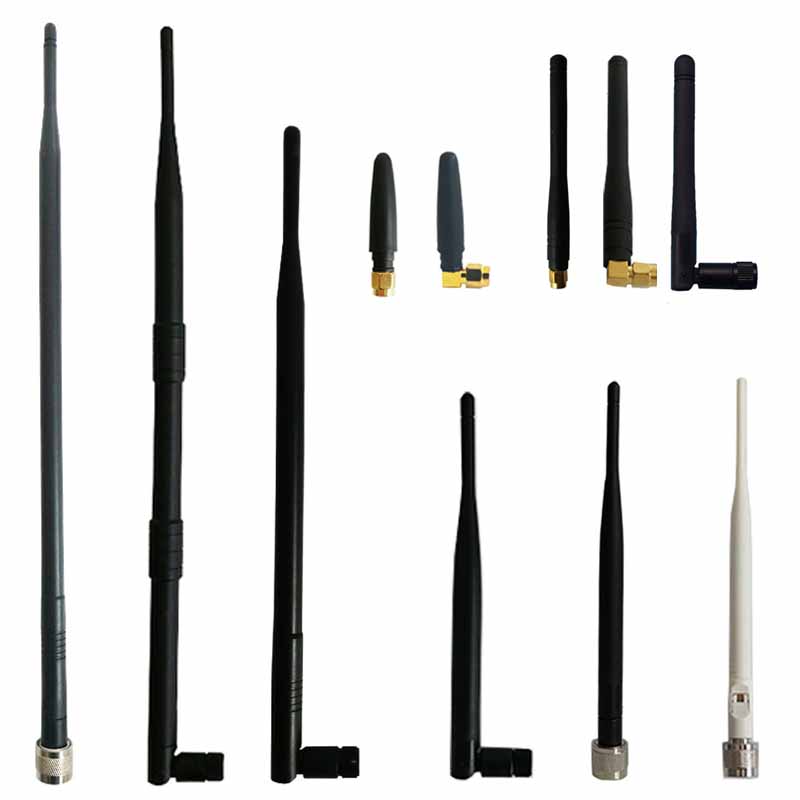

2.4 GHz External Wireless Antennas
Frequency:2400-2500MHz,2-9dBi the Rubber-Duck antenna with pigtail is a coaxial sleeve design with an
omni-directional pattern. It is ideally suited for IEEE 802.11b, 802.11g and 802.11n wireless LANs,
Bluetooth® and other WLAN applications

Features:
•Flexible "Rubber Duck" antenna
•Compact and easy to store
•vertical polarization
Applications :
•2.4 GHz ISM Band
•IEEE 802.11b, 802.11g Wireless LAN & IEEE 802.11n
•(Pre-N, Draft-N) Applications
•Public Wireless Hotspot
•Wireless Video Systems
•Multipoint and Mobile Applications & Bluetooth®

Model No. Frequency Gain Length
SER-2425-2S 2400-2500MHz 2dBi 55mm
SER-2425-2L 2dBi 49mm
SER-2425-3S 3dBi 108mm
SER-2425-3L 3dBi 106mm
SER-2425-3H 3dBi 108mm（Straight）90mm（Hinged）
SER-2425-5H 5dBi 195mm（Straight）171mm（Hinged）
SER-2425-5N 5dBi 201mm（Straight）171mm（Hinged）
SER-2425-5NW 5dBi 201mm（Straight）171mm（Hinged）
SER-2425-7H 7dBi 280mm
SER-2425-9H 9dBi 380mm
SER-2425-9N 9dBi 380mm
