Model No.:SOF-C1090-6

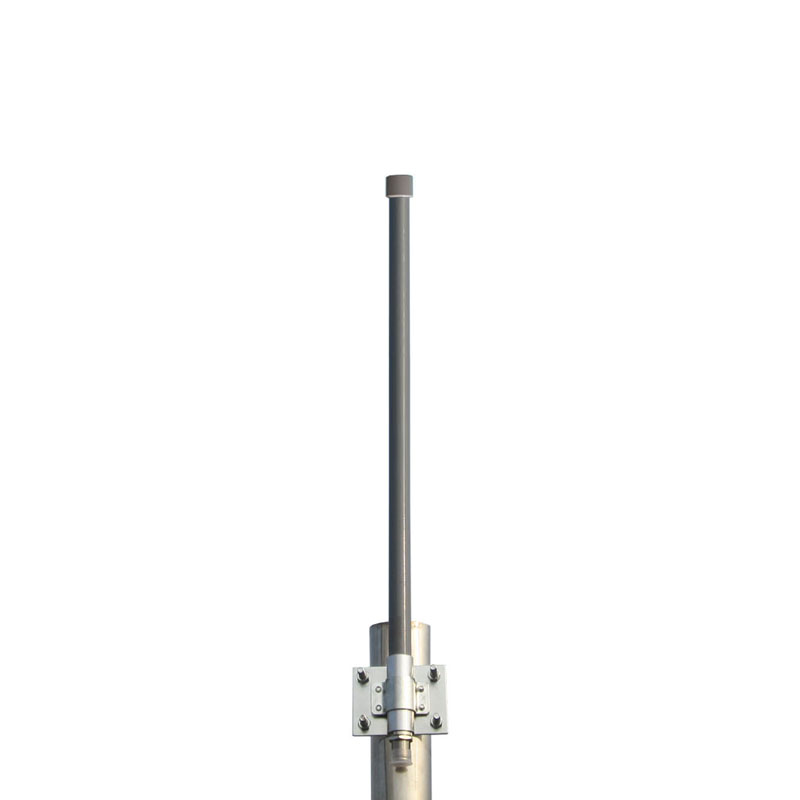

Product Name:1090MHz 5.5dBi Fiberglass Antenna
Applications:
•Automatic dependent surveillance - broadcast (ADS–B)
•1060-1120MHz Wireless Network Systems
|
Frequency Range
|
1060-1120MHz
|
|
Bandwidth
|
80MHz
|
|
Gain
|
5.5dBi
|
|
Polarization
|
Vertical
|
|
Vertical Half-power Beam width
|
360°
|
|
Horizontal Half-power Beam width
|
28°
|
|
VSWR
|
≤1.5
|
|
Input Impedance
|
50Ω
|
|
Maximum input power
|
100W
|
|
Lightning protection
|
DC Ground
|
|
Input connector type
|
N Female or Customized
|
|
Dimensions
|
Φ20*600mm
|
|
Antenna weight
|
0.6kg
|
|
Radome material
|
Fiberglass
|
|
Radome color
|
Gray
|
|
Operating temperature
|
-40℃~60℃
|
|
Rated Wind Velocit
|
60m/s
|
|
Mounting way
|
Pole-holding
|
|
Mounting hardware
|
￠35mm~￠50mm
|
