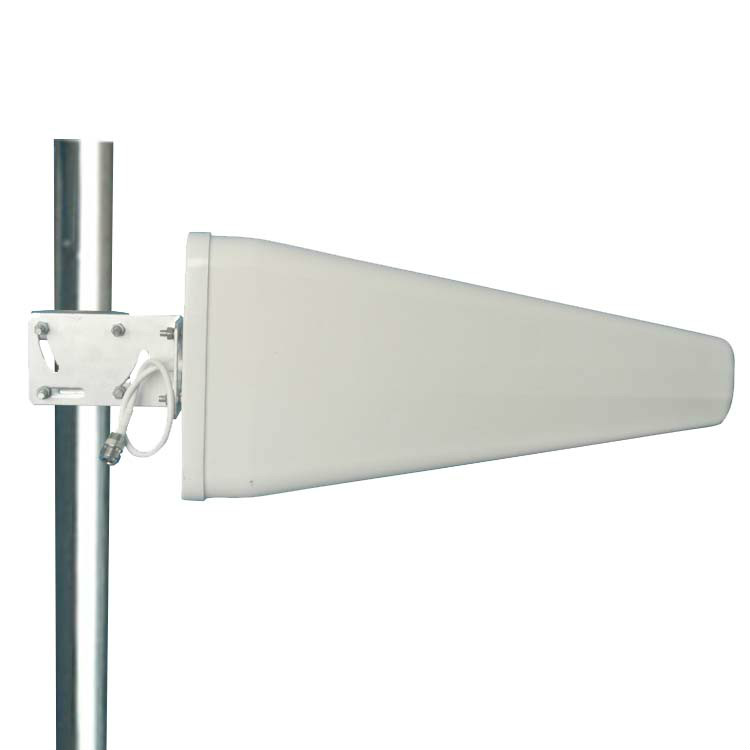

800-2700MHz Log Periodic Antenna 12dBi

•High gain directional outdoor antenna

•Operates simultaneously on Cell, GSM, PCS, and ISM

•Light gray attractive UV protected housing

•DC grounded for lightning protection

•Vertical polarization

•Type N female connector


Detail

1.Introduction

The Log Periodic antennas series which cover a very wide frequency range from 800-2700MHz. Because it covers both LTE, Cellular and WiFi worldwide frequencies, it is very useful for CPE equipment and in-building wireless equipment needed for these frequency bands, minimizing the amount of equipment needed for each service location. The SDLP series can be used inside or outside. It comes complete with all components needed for pole mounting or wall mounting. The sealed housing is UV stabilized ABS plastic. All bracket components are corrosion protection. The pigtail is 30cm outdoor rated cable terminated with an N Female connector standard. Other connector and cable configurations available upon request.

 2.Specification

Type

Directional Log Periodic Antenna

Model No.

SDLP-0827-12

ELECTRICAL

Frequency

800-960MHz

1700-2700MHz

Gain

11dBi

12dBi

Half-power beam width

H:65°   V:50°

H:50°  V:40°

F/B Ratio

>17dB

VSWR

≤1.5

Radiation Properties

Directional

Power Handling

50W

Polarization

Vertical

Impedance

50 ohms

Lightning protection

DC Ground

MECHANICAL

Dimensions (mm)

450x210x65mm

Connector

N Female

Connector Position

With 30cm Low Loss Pigtail

Weight

1.0kg

Mount Style

Pole Mount

ENVIRONMENTAL RATINGS

Temperature Range

-40°C to 70°C

Rated Wind Velocity

60m/s
