Model No. |
: |
SDPA-5158VH-29 |
|
Product Name |
: |

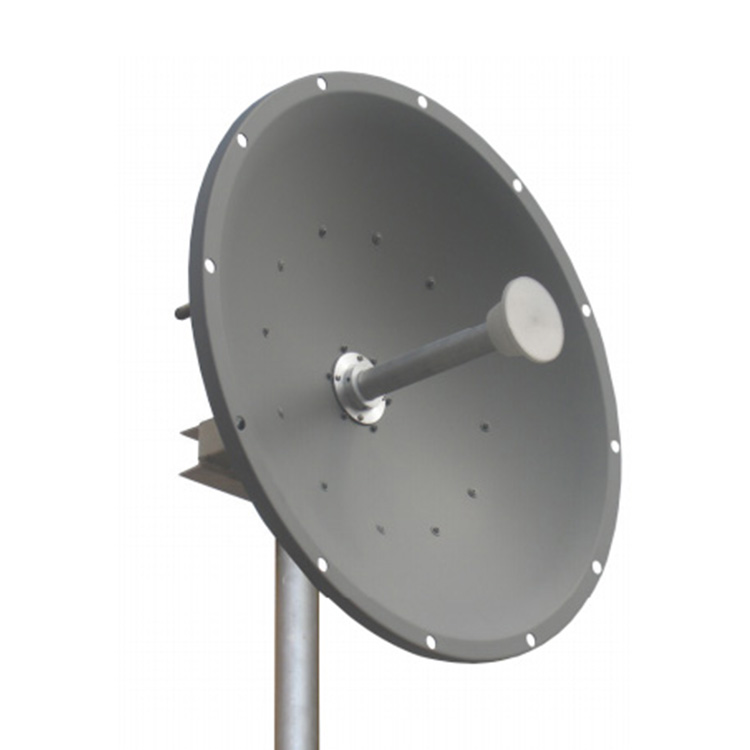

5GHz MIMO Parabolic Dish Antenna |
|
Features
|
: |
•5150-5850MHz wide band •Excellent front to back ratio •Aluminum reflector dish •UV Stable light gray polymer finish •All weather operation •Vertical and horizontal polarization.
|
1.Introduction
The solid parabolic dish Antenna features excellent front to back ratio. It is ideally suited for directional applications, point to point systems. It is ideally suited for 802.11a wireless LAN equipment for the 5150-5850MHz wideband.
The reflector dish of this antennas is constructed from high quality aluminum which gives them superior strength. The dish is coated in a light gray UV-inhibited polymer for durability and aesthetics. The antenna is supplied with a 0deg - 30deg tilt and swivel mast mount kit. This allows installation at various degrees of incline for easy alignment.
2. Specification
|
Type |
Parabolic Dish antenna |
|
Model No. |
SDPA-5158VH-29 |
|
Electrical Specifications |
|
|
Frequency |
5150-5850MHz |
|
Bandwidth |
700MHz |
|
Gain |
2 x 29dBi |
|
Beamwidth |
Horizontal :6° Vertical: 6° |
|
VSWR |
≤1.5 |
|
F/B Ratio |
≥25dB |
|
Radiation Properties |
Directional |
|
Power Handling |
100W |
|
Polarization |
Vertical and Horizontal |
|
Impedance |
50 Ohms |
|
Lightning protection |
DC Ground |
|
Mechanical Specifications |
|
|
Dimensions (mm) |
Φ60cm |
|
Weight |
5kg |
|
Connector |
2 x N Female |
|
Mount Style |
Pole Mount |
|
Color |
Gray |
|
Environmental Specifications |
|
|
Wind Resistance |
100km/h |
|
Temperature Range |
-40°C to 85°C |
