| Model Number: | SER-C868-9 | |||||||
| Applications: | •Low Power Radio (Sigfox, LPWA, LoRa) | |||||||
| •mesh networks | ||||||||
| •IoT, metering, industrial/environmental | ||||||||
| Monitoring, remote asset monitoring | ||||||||
| Features: | •Omnidirectional Radiation Pattern | |||||||
| •Compact and Easy to Store | ||||||||
| •Vertical Polarization | ||||||||

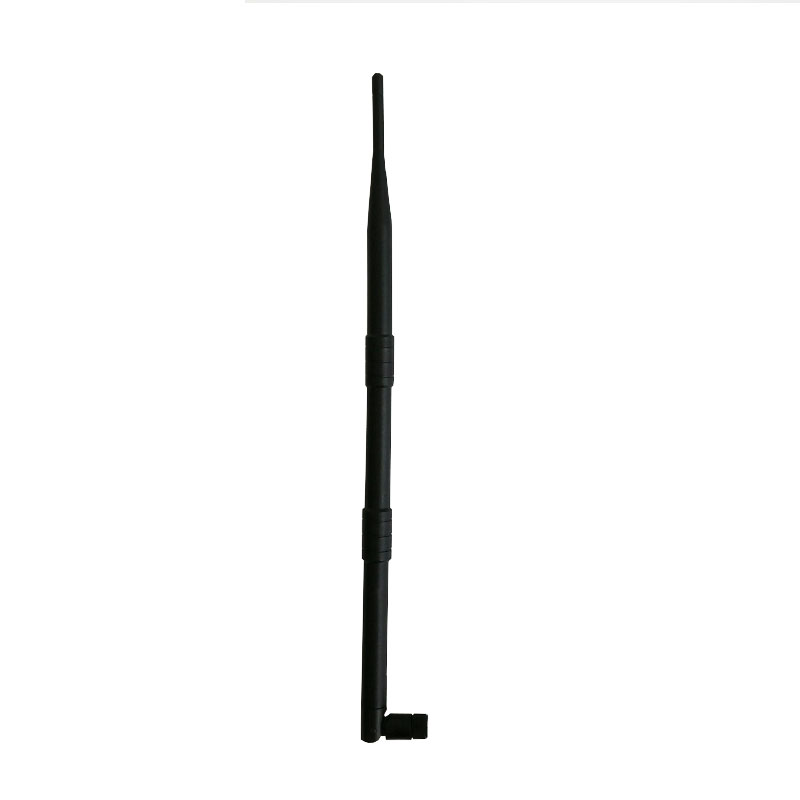

| Type | Rubber Ducky Antenna | ||||||||
| Model No. | SER-C868-9 | ||||||||
|
ELECTRICAL
|
|||||||||
| Frequency | 860-930MHz | ||||||||
| Gain | 9dBi | ||||||||
| VSWR | ≤1.5 | ||||||||
| Radiation Properties | Omni-directional | ||||||||
| Power Handling | 20W | ||||||||
| Polarization | Vertical | ||||||||
| Impedance | 50 Ohms | ||||||||
|
MECHANICAL
|
|||||||||
| Length | 380mm | ||||||||
| Weight | 38g | ||||||||
| Connector | SMA Male | ||||||||
| Color | Black | ||||||||
|
ENVIRONMENTAL
|
|||||||||
| Temperature Range | -40°C to 60°C | ||||||||
