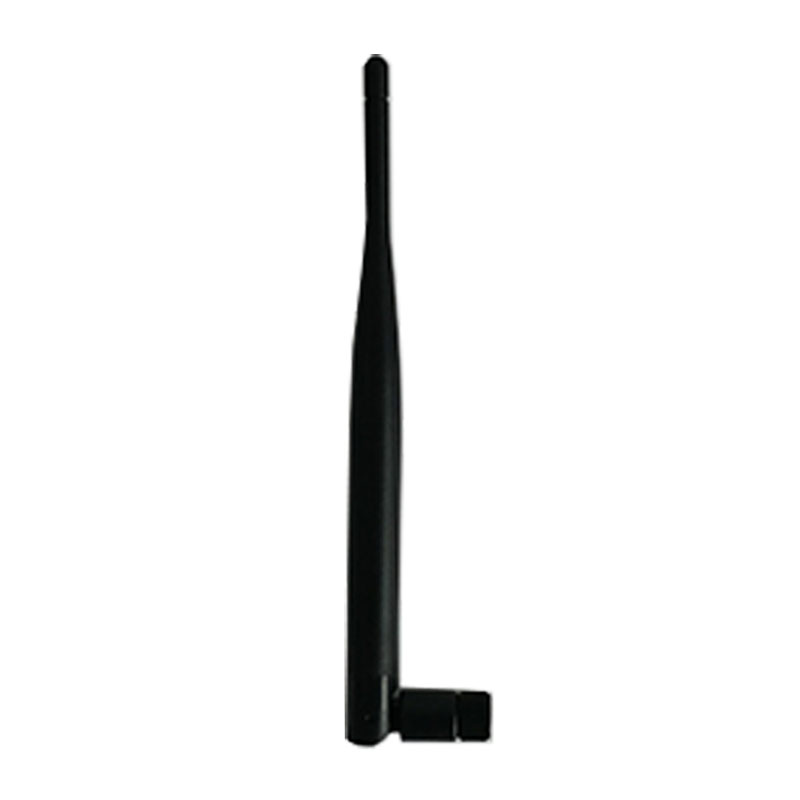

2.4GHz 5dBi Screw Mount Rubber Duck Antenna

Position

Home > Product > 2.4GHz Antennas > External Antennas

Model No. :
SER-2425-5H

Product Name :
2.4GHz 5dBi Screw Mount Rubber Duck Antenna

Applications :
WiFi / Wireless LAN
ZigBee / Public Safety
Bluetooth / Wireless Terminal

Download file

Detail

Type : Rubber Duck Antenna
Model No. : SER-2425-5H
Frequency : 2400-2500MHz
Gain : 5dBi
VSWR : ≤1.5
Radiation Properties : Omni-directional
Power Handling : 20W
Polarization : Vertical
Impedance : 50 Ohms
Length (mm) : 195mm（Straight）171mm（Hinged）
Weight : 16g
Connector : SMA(M)
Color : Black
Temperature Range : -40°C to 60°C
