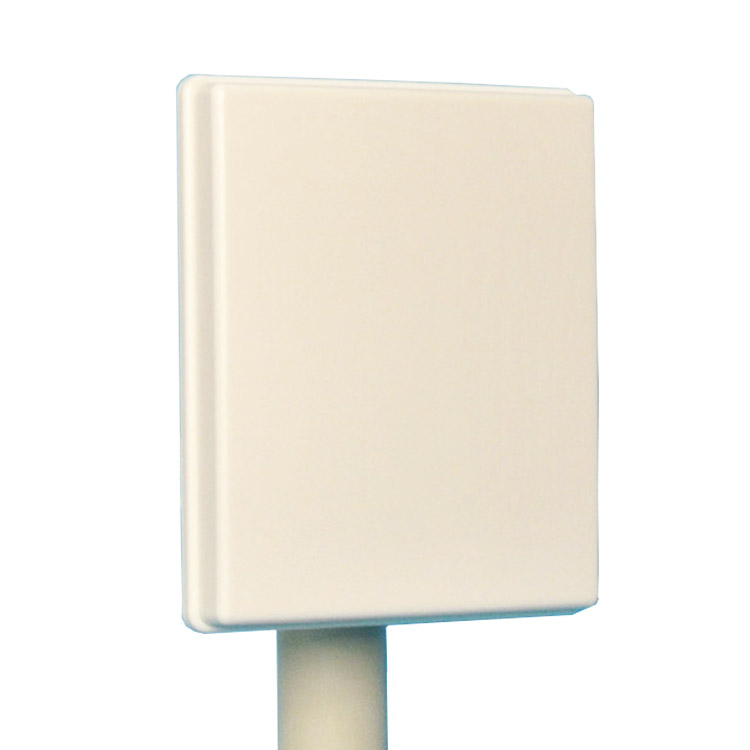

2.4 GHz ISM Band 14dBi Directional Wireless Flat Panel Antenna

Model No. :
SDP-2425-14C

Product Name :
2.4 GHz 14dBi Flat Panel Antennas

Applications :
•2.4 GHz ISM Band
•IEEE 802.11b, 802.11g, 802.11n
(Pre-N, Draft-N) Wireless LAN Applications
•Bluetooth® & Public Wireless Hotspot
•Wi-Fi & Wireless Video Systems

Detail

Type : Panel Antenna
Model No. : SDP-2425-14C
Frequency : 2400-2500MHz
Bandwidth : 100MHz
Gain : 14dBi
Horizontal Beamwidth : 30°
Vertical Beamwidth : 30°
VSWR : ≤1.5
Radiation Properties : Directional
Power Handling : 50W
Polarization : Vertical
Impedance : 50 Ohms
Lightning protection : DC Ground
Dimensions (mm) : 235x195x35mm
Weight : 0.6kg
Connector : N Female or Customized
Mount Style : Pole Mount
Color : White
Wind Resistance : 100km/h
Temperature Range : -40°C to 60°C
