868MHz high gain 14dBi 2.2 Meters Outdoor Omnidirectional Fiberglass antennas

Position

Home > Product > 868MHz Antennas

Model No. :
SOF-C868-14

Product Name :

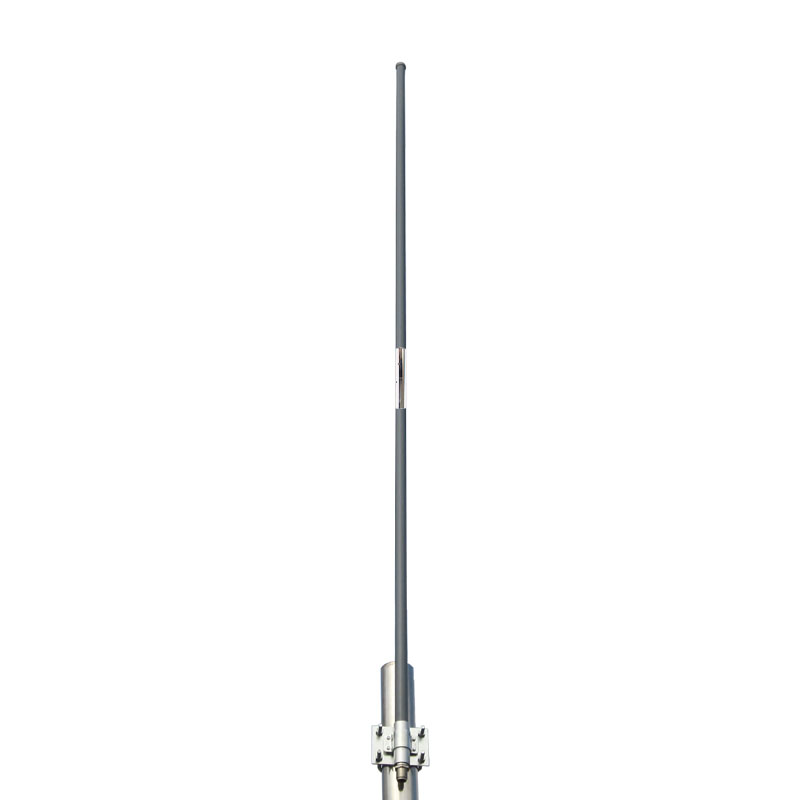

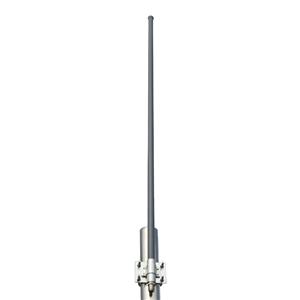

868MHz 14 dBi 2 Sections Fiberglass Antenna

Applications :
•Low Power Radio (Sigfox, LPWA, LoRa)
•mesh networks
•IoT, metering, industrial/environmental monitoring
remote asset monitoring

Download file

Detail

Type : Fiberglass Antenna
Model No. : SOF-C868-14
Frequency : 806-960MHz
Bandwidth : 154MHz
Gain : 14dBi
Horizontal Beamwidth : 360°
Vertical Beamwidth : 6°
VSWR : ≤1.5
Radiation Properties : Omni-Directional
Power Handling : 100W
Polarization : Vertical
Impedance : 50 Ohms
Lightning protection : DC Ground
Length (mm) : 220cm
Weight : 1.80kg
Connector : N Female or Customized
Mount Style : Pole Mount
Color : Gray
Wind Resistance : 100km/h
Temperature Range : -40°C to 60°C
Remarks ： Can be divided into 2 parts
