Model No. :
SDY-0809-5E9
Product Name :

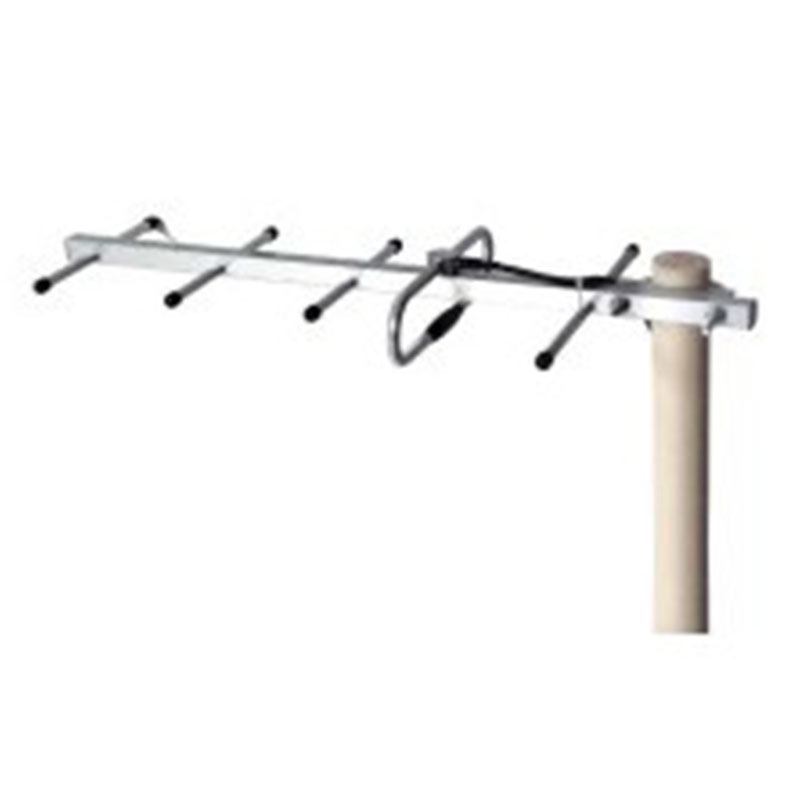

8868MHz 5 Elements 9dBi Yagi Antenna
Applications :
•Low Power Radio (Sigfox, LPWA, LoRa)
•mesh networks
•IoT, metering, industrial/environmental monitoring
remote asset monitoring
Type : Yagi Antenna
Model No. : SDY-0809-5E9
Frequency : 806-960MHz
Bandwidth : 154MHz
Gain : 9dBi
Horizontal Beamwidth : 54°
Vertical Beamwidth : 48°
VSWR : ≤1.5
F/B Ratio : ≥15
Power Handling : 100W
Polarization : Vertical or Horizontal
Impedance : 50 ohm
Lightning protection : DC Ground
Length (mm) : 50cm
Weight : 0.40kg
Connector : N Female or Customized
Mount Style : Pole Mount
Color : Gray
Wind Resistance : 100km/h
Temperature Range : -40°C to 60°C
