Model No. :
SDP-5158VH-15
Product Name :

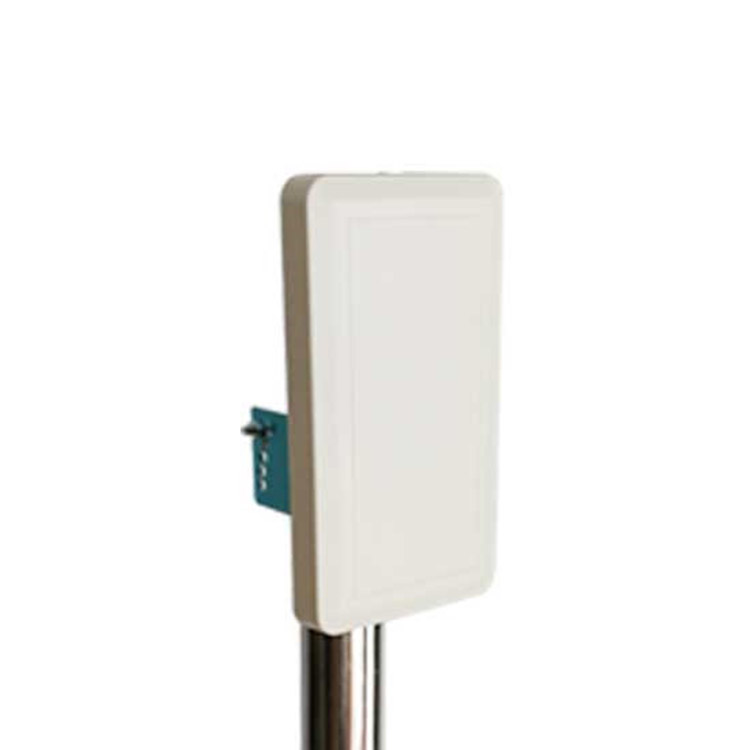

5GHz MIMO 15dBi Flat Panel Antennas
Applications :
•5.3 GHz, 5.4 GHz and 5.8 GHz Band Applications
•IEEE 802.11a Wireless LAN
•5.8GHz UNII and ISM Applications
•Unlicensed European 5.4 GHz Band Applications
•WiMAX Technology
•WiFi Systems
•5.8 GHz Wireless Video Systems
|
Frequency Range
|
5150-5850MHz
|
|
Bandwidth
|
700MHz
|
|
Gain
|
15dBi
|
|
Polarization
|
Vertical and horizontal
|
|
Horizontal Half-power Beam Width
|
60°
|
|
Vertical Half-power Beam Width
|
14°
|
|
VSWR
|
≤1.5
|
|
Input Impedance
|
50Ω
|
|
Maximum input power
|
50W
|
|
Lightning protection
|
DC Ground
|
|
Input connector type
|
2 x N Female
|
|
Dimensions
|
220*120*25mm
|
|
Antenna weight
|
0.40kg
|
|
Radome material
|
UPVC
|
|
Radome color
|
White
|
|
Operating temperature
|
-40℃～60℃
|
|
Rated Wind Velocit
|
60m/s
|
|
Mounting way
|
Pole-holding
|
|
Mounting hardware
|
￠35mm～￠50mm
|
