Model No. |
: |
SER-3436-5 |
|
Product Name |
: |

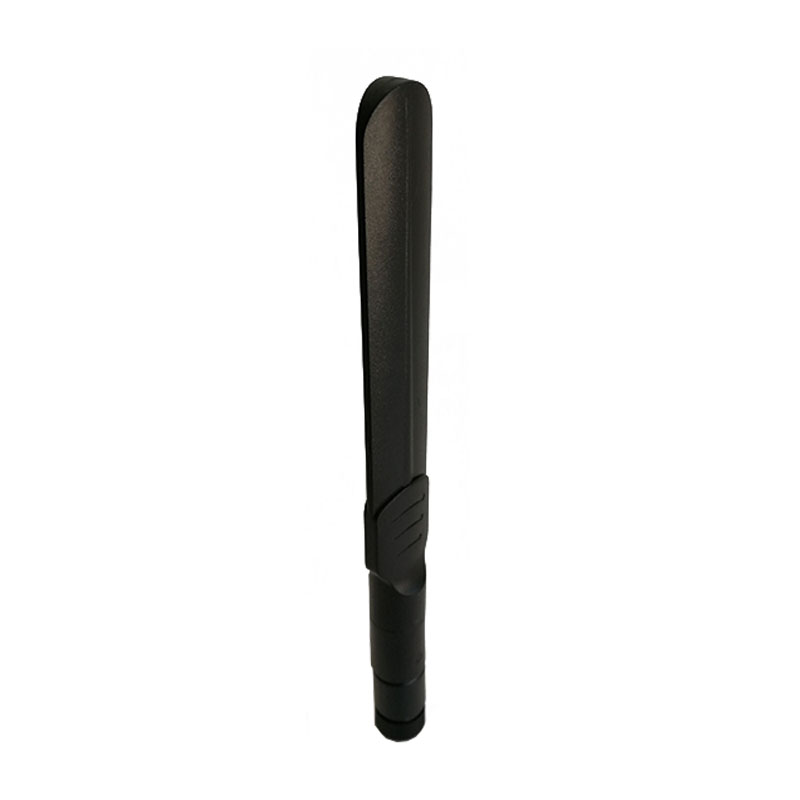

3400-3600MHz Rubber Duck Antenna |
|
Features
|
: |
3.5 GHz Band Applications •Wireless LAN systems •WiMAX & Mobile WiMAX •Multipoint and Mobile Applications
|
1.Introduction
Frequency:3400-3600MHz, 5dBi the Rubber-Duck antenna is vertical polarization with an omnidirectional pattern. It is ideally suited for IEEE 802.16e, WiMAX and Mobile WiMAX applications.
2.Specification
|
Type |
Rubber Duck Antenna |
|
Model No. |
SER-3436-5 |
|
ELECTRICAL |
|
|
Frequency |
3400-3600MHz |
|
Bandwidth |
200MHz |
|
Gain |
5dBi |
|
Half-power beam width |
H:360° |
|
VSWR |
≤2.0 |
|
Radiation Properties |
Omni-directional |
|
Power Handling |
50W |
|
Polarization |
Vertical |
|
Impedance |
50 ohms |
|
MECHANICAL |
|
|
Dimensions (mm) |
160x18mm |
|
Connector |
SMA male or Others |
|
Connector Position |
Bottom |
|
Weight |
60g |
|
Mount Style |
Screw Mount |
|
ENVIRONMENTAL RATINGS |
|
|
Temperature Range |
-40°C to 50°C |
