Model No. |
: |
SER-0918-2C |
|
Product Name |
: |

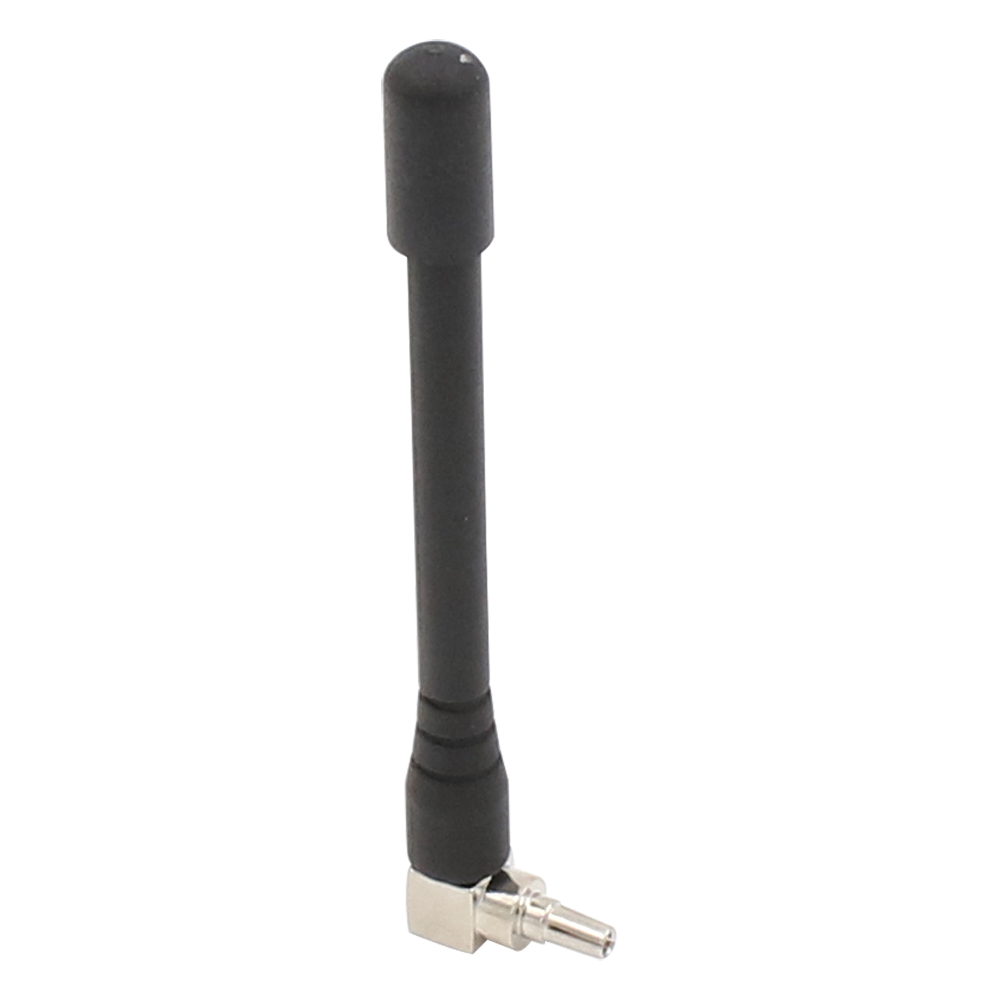

2G 3G Rubber Duck Antenna |
|
Features
|
: |
•Flexible "Rubber Duck" antenna •Compact and easy to store •Vertical polarization
|
1.Introduction
824-960 /1710-1990 MHz ,2dBi the Rubber-Duck antenna is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for designed for the 800MHz Cellular band and 1900MHz PCS band, is designed for both voice and data wireless application systems
2.Specification
|
Type |
Rubber Duck Antenna |
|
Model No. |
SER-0918-2C |
|
ELECTRICAL |
|
|
Frequency |
824-960 /1710-1990MHz |
|
Bandwidth |
136/280MHz |
|
Gain |
2dBi |
|
Half-power beam width |
H:360° |
|
VSWR |
≤2.0 |
|
Radiation Properties |
Omni-directional |
|
Power Handling |
50W |
|
Polarization |
Vertical |
|
Impedance |
50 ohms |
|
MECHANICAL |
|
|
Dimensions (mm) |
79mm |
|
Connector |
CRC9 or Others |
|
Connector Position |
Bottom |
|
Weight |
60g |
|
Mount Style |
Screw Mount |
|
ENVIRONMENTAL RATINGS |
|
|
Temperature Range |
-40°C to 50°C |
