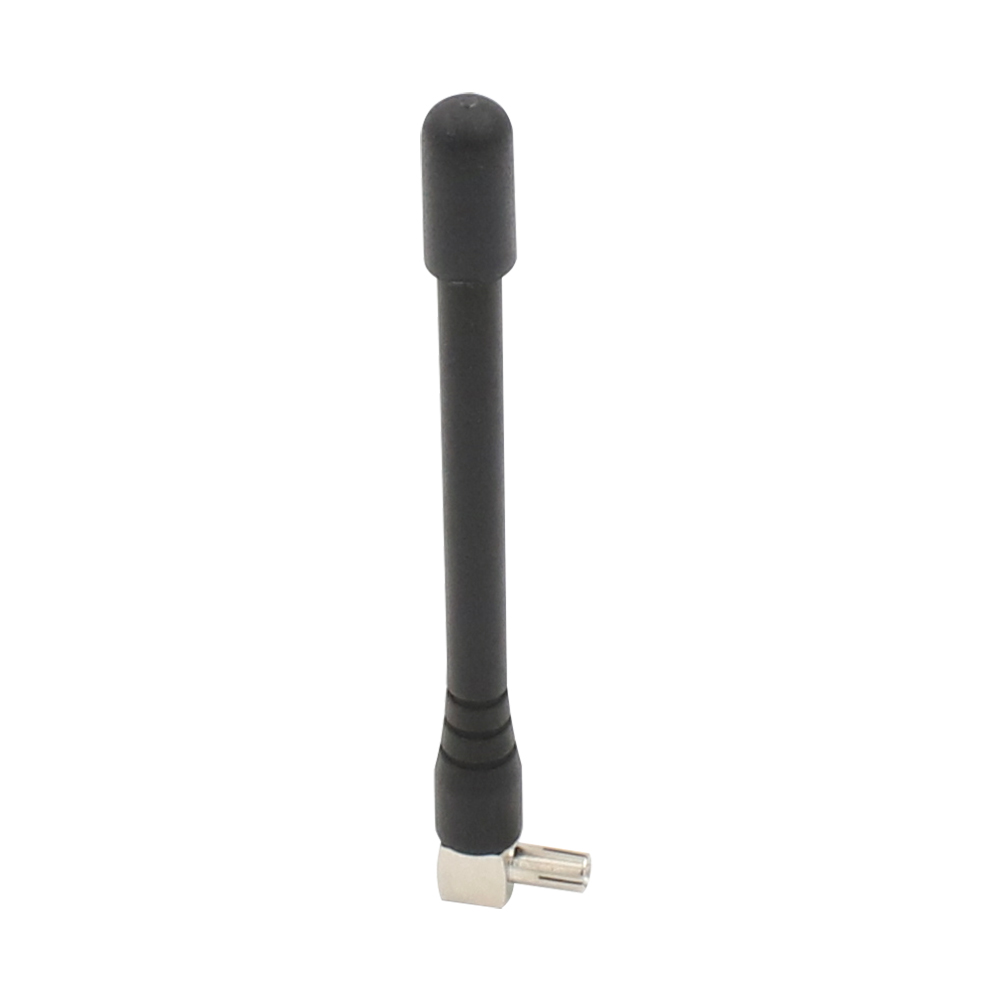

2G 3G dual band external antenna TS9

Model No.

:

SER-0918-2T

Product Name

:

2G 3G Rubber Duck Antenna

Features





:

•Flexible "Rubber Duck" antenna

•Compact and easy to store

•Vertical polarization




Detail

1.Introduction

  824-960 /1710-1990 MHz ,2dBi the Rubber-Duck antenna is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for designed for the 800MHz Cellular band and 1900MHz PCS band, is designed for both voice and data wireless application systems


 2.Specification

Type

Rubber Duck Antenna

Model No.

SER-0918-2T

ELECTRICAL

Frequency

824-960 /1710-1990MHz

Bandwidth

136/280MHz

Gain

2dBi

Half-power beam width

H:360°

VSWR

≤2.0

Radiation Properties

Omni-directional

Power Handling

50W

Polarization

Vertical

Impedance

50 ohms

MECHANICAL

Dimensions (mm)

79mm

Connector

TS9 or Others

Connector Position

Bottom

Weight

60g

Mount Style

Screw Mount

ENVIRONMENTAL RATINGS

Temperature Range

-40°C to 50°C
