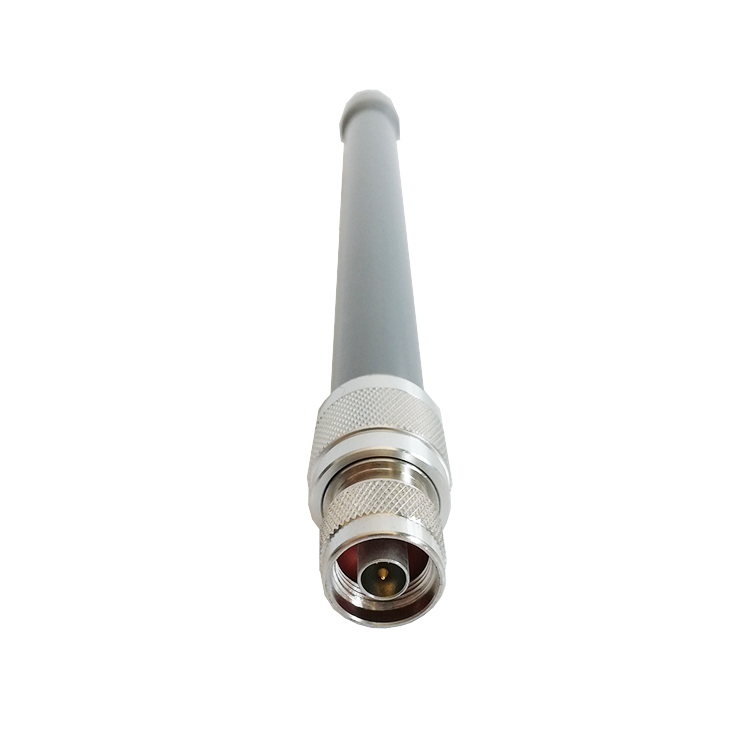

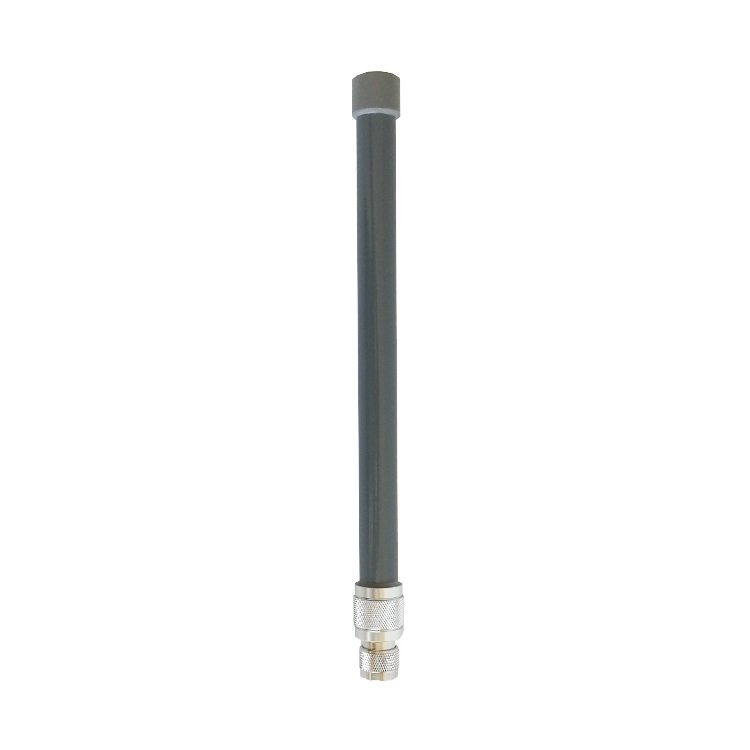

2.4g outdoor wifi omni directional fiberglass antenna 5dBi

Home > Product > 2.4GHz Antennas > Omni-directional antennas

Model Number:		SOF-2425-5M

Applications:		•2.4 GHz ISM Band
		•IEEE 802.11b, 802.11g and 802.11n Wireless LAN
		•Multipoint Applications

Features:		•Robust Design for all Weather operation
		•UV resistant fiberglass housing
		•IP65 Waterproof
		•Collinear

Detail

Type	Omnidirectional Antenna
Model No.	SOF-2425-5M
ELECTRICAL
Frequency	2400-2500MHz
Bandwidth	100MHz
Horizontal Half-power Beam Width	360°
Vertical Half-power Beam Width	38°
Gain	5dBi
Polarization	Vertical
VSWR	<1.5
Radiation Properties	Omnidirectional
Power Handling	50W
Impedance	50 Ohms
Lightning Protection	DC Ground
MECHANICAL
Input Connector Type	N Type Male
Length	295mm
Antenna Weight	0.14kg
Radome Material	Fiberglass
Radome Color	Gray
Mount Style	Connector Mount
ENVIRONMENTAL
Operation Temperature	-40°C to 85°C
Rated Wind Velocity	Up to 200km/h
