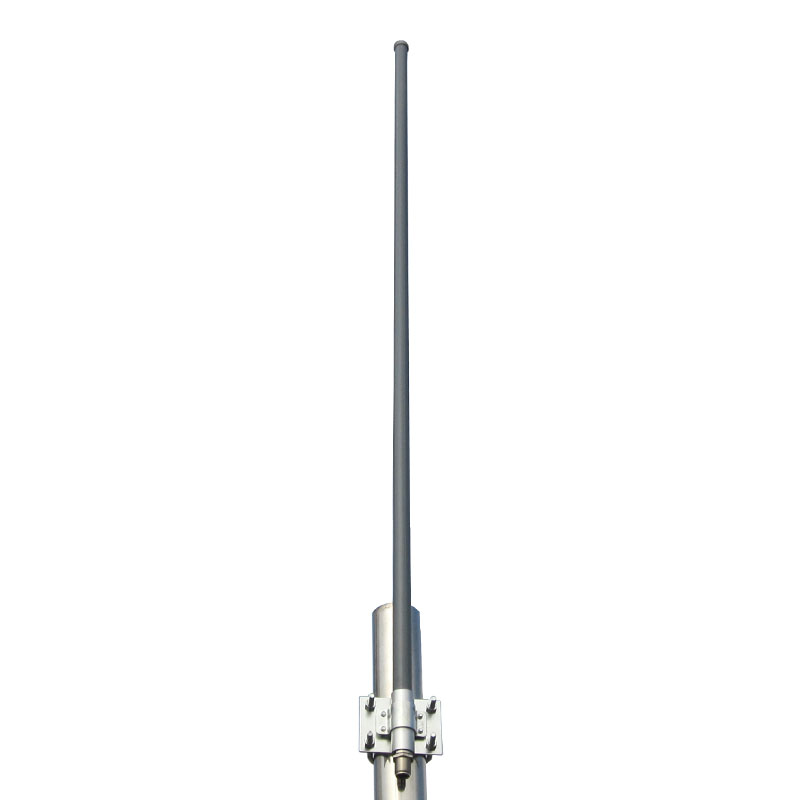

915MHz 1.2 Meters lora Outdoor Omnidirectional Fiberglass antenna

Home > Product > 915MHz Antennas

Applications:		•915 MHz ISM band
		•Metering, industrial / environmental monitoring
		•Remote asset monitoring

Features:		•Omnidirectional Radiation Pattern
		•UV resistant fiberglass housing
		•IP65 Waterproof
		•Connector: N Type Female

Detail

Type	Omnidirectional Antenna
Model No.	SOF-C915-8
ELECTRICAL
Frequency	915MHz
Bandwidth	26MHz
Horizontal Half-power Beam Width	360°
Vertical Half-power Beam Width	10°
Gain	8.5dBi
Polarization	Vertical
VSWR	<1.5
Radiation Properties	Omnidirectional
Power Handling	100W
Impedance	50 Ohms
Lightning Protection	DC Ground
MECHANICAL
Input Connector Type	N Type Female
Length	1.2m
Antenna Weight	0.8kg
Radome Material	Fiberglass
Radome Color	Gray
Mount Style	Pole Mount
ENVIRONMENTAL
Operation Temperature	-40°C to 85°C
Rated Wind Velocity	Up to 200km/h
