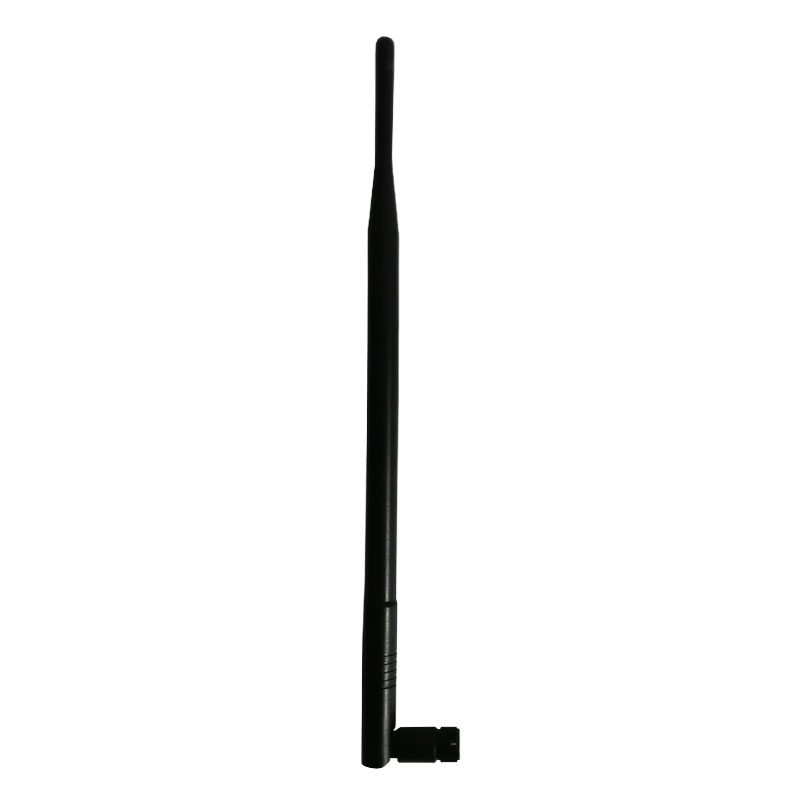

2.4G WiFi 7dBi SMA Male Dipole Antenna

Position

Home > Product > 2.4GHz Antennas > External Antennas

Model No. :
SER-2425-7H

Product Name :
2.4G WiFi 7dBi SMA Male Dipole Antenna

Applications :
WiFi / Wireless LAN
ZigBee / Public Safety
Bluetooth / Wireless Terminal

Download file

Detail

Type : Rubber Duck Antenna
Model No. : SER-2425-7H
Frequency : 2400-2500MHz
Gain : 7dBi
VSWR : ≤1.5
Radiation Properties : Omni-directional
Power Handling : 20W
Polarization : Vertical
Impedance : 50 Ohms
Length (mm) : 280mm
Weight : 28g
Connector : SMA Male
Color : Black
Temperature Range : -40°C to 60°C
