Can be used for
outdoor GSM/CDMA base station
868/915MHz Iot signal coverage|
Electrical Specification
|
|
|
Frequency Range
|
806~960 MHz
|
|
Gain
|
2 x 12dBi
|
|
Polarization
|
±45°
|
|
Horizontal Half-power Beam width
|
65°
|
|
Vertical Half-power Beam width
|
30°
|
|
Front to back ratio(dB)
|
≥25
|
|
VSWR
|
≤1.5
|
|
Isolation between ports
|
≥28dB
|
|
Cross-polar ratio
|
≥15dB@0º ≥10dB@+/-60º
|
|
Sidelobe suppression for first sidelobe above horizon
|
15 dB
|
|
Max power
|
400W
|
|
Lightning protection
|
DC Ground
|
|
Mechanical Specification
|
|
|
Input connector type
|
N Female or Customized
|
|
Dimensions(Heigh/width/depth)
|
700*280*80mm
|
|
Antenna weight
|
6.0kg
|
|
Radome material
|
UPVC
|
|
Radome color
|
Gray
|
|

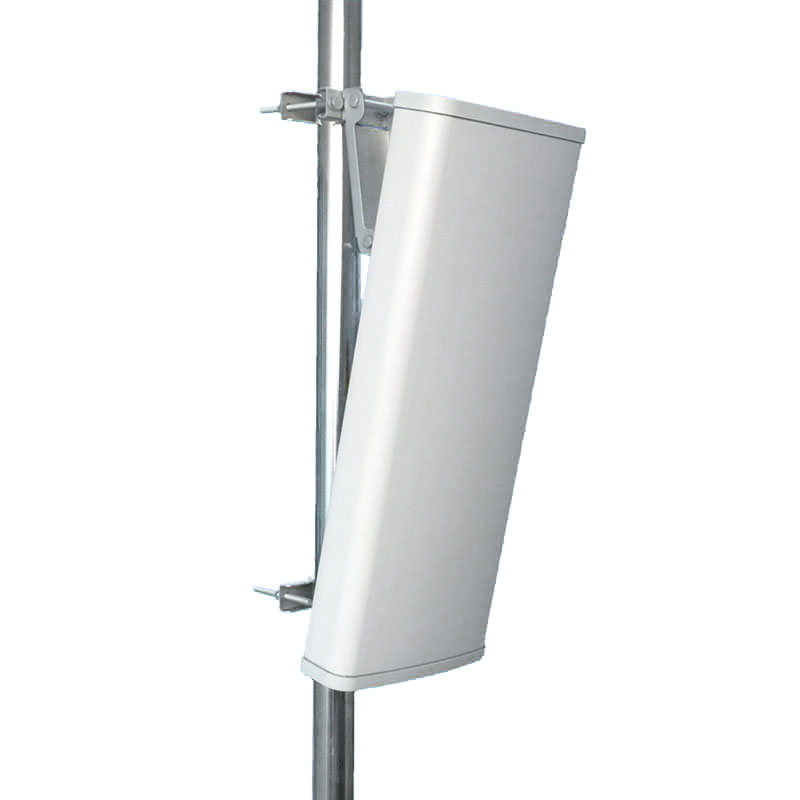

Mechanical tilt
|
0°~10°
|
|
Operating temperature
|
-40℃～60℃
|
|
Rated Wind Velocit
|
60m/s
|
|
Mounting hardware
|
￠35mm～￠90mm
|
