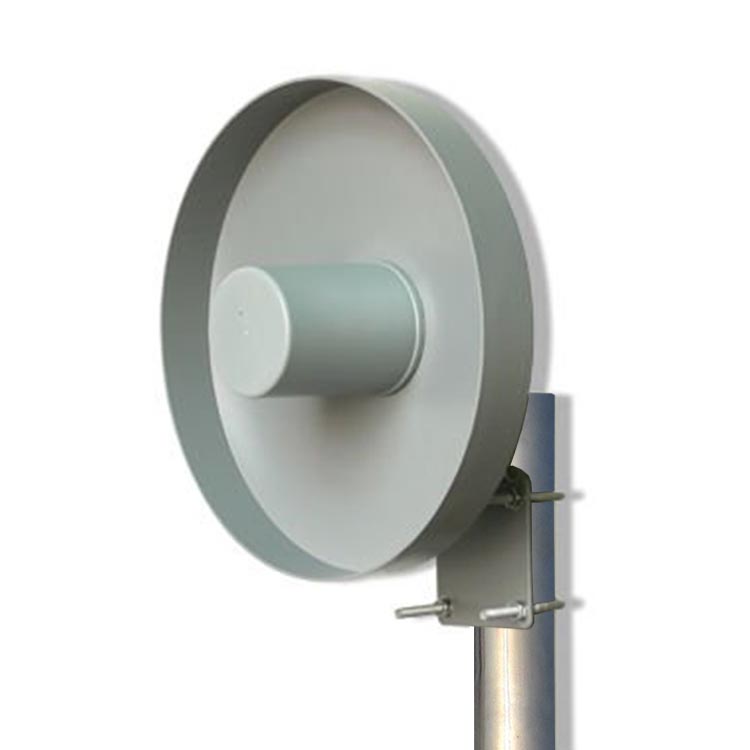

2.4g backfire antenna high gain 16dbi

Model No. :SD-2425-16BF

Product Name : 2.4 GHz Short Backfire Antenna

Applications :

•2.4 GHz ISM Band

•IEEE 802.11b, 802.11g Wireless LAN & IEEE 802.11n (Pre-N,Draft-N) Applications

•WiFi Systems & Long-range Directional Applications

•Point to Point Systems & Point to Multi-point Systems

•Wireless Bridges, Backhaul Applications & Wireless Video Systems


Detail
Frequency Range
2400-2500MHz
Bandwidth
100MHz
Gain
16dBi
Polarization
Vertical
Horizontal Half-power Beam Width
26°
Vertical Half-power Beam Width
24°
VSWR
≤1.5
Input Impedance
50Ω
Maximum input power
100W
Lightning protection
DC Ground
Input connector type
N Female
Dimensions
Diameter: 26cm
Antenna weight
1.5kg
Radome color
Gray
Operating temperature
-40℃~85℃
Rated Wind Velocit
60m/s
Mounting way
Pole Mount
Mounting hardware
¢35mm~¢50mm
