433MHz 3dBi lora Outdoor Omnidirectional Fiberglass antenna ism band

Applications: •433 MHz ISM band
•Metering, industrial / environmental monitoring
•Remote asset monitoring
Features: •Omnidirectional Radiation Pattern
•UV resistant fiberglass housing
•IP65 Waterproof
•Connector: N Type Female

Detail

Type Omnidirectional Antenna
Model No. SOF-C433-3
ELECTRICAL
Frequency 433MHz
Bandwidth 14MHz
Horizontal Half-power Beam Width 360°
Vertical Half-power Beam Width 40°
Gain 3dBi
Polarization Vertical
VSWR <1.5
Radiation Properties Omnidirectional
Power Handling 100W
Impedance 50 Ohms
Lightning Protection DC Ground
MECHANICAL

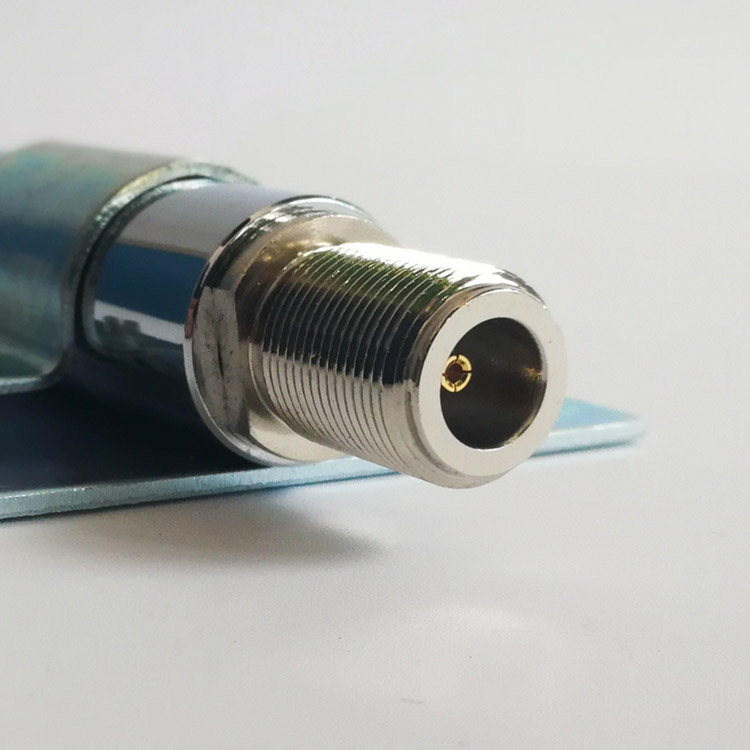

Input Connector Type N Type Female
Length 0.4m
Antenna Weight 0.55kg
Radome Material Fiberglass
Radome Color Gray

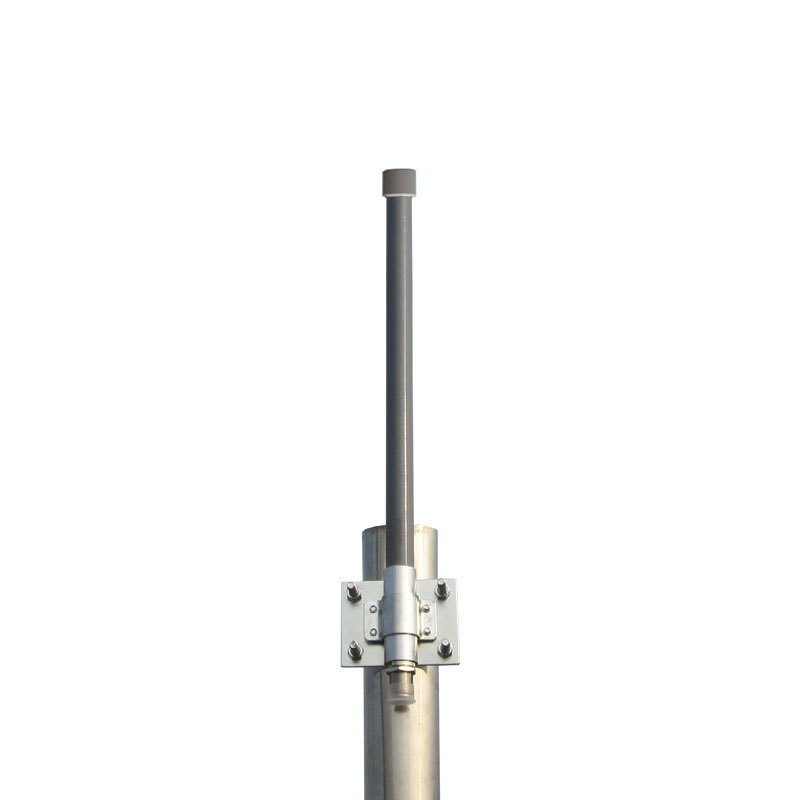

Mount Style Pole Mount
ENVIRONMENTAL
Operation Temperature  -40°C to 85°C
Rated Wind Velocity Up to 200km/h
