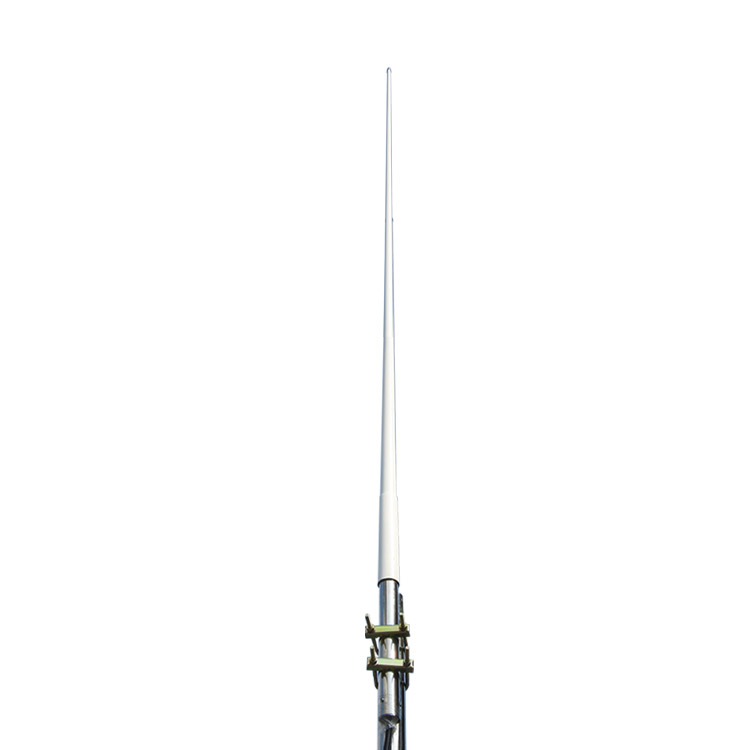

433MHz outdoor 2.5 meters high gain antenna Lora omni directional fiberglass

Home > Product > 433MHz Antennas

Model Number:		SOF-C433-8

Applications:		•433 MHz ISM band
		•Metering, industrial / environmental monitoring
		•Remote asset monitoring

Features:		•Omnidirectional Radiation Pattern
		•UV resistant fiberglass housing
		•IP65 Waterproof
		•Connector: N Type Female

Detail

Type	Omnidirectional Antenna
Model No.	SOF-C433-8
ELECTRICAL
Frequency	433MHz
Bandwidth	14MHz
Horizontal Half-power Beam Width	360°
Vertical Half-power Beam Width	14.5°
Gain	8.5dBi
Polarization	Vertical
VSWR	<1.5
Radiation Properties	Omnidirectional
Power Handling	100W
Impedance	50 Ohms
Lightning Protection	DC Ground
MECHANICAL
Input Connector Type	N Type Female
Length	2.5m
Antenna Weight	2.5kg
Radome Material	Fiberglass
Radome Color	White
Mount Style	Pole Mount
ENVIRONMENTAL
Operation Temperature	-40°C to 85°C
Rated Wind Velocity	Up to 200km/h
