433 MHz outdoor 8dBi fiberglass antenna with N female connector

Home > Product > 433MHz Antennas

Model Number:		SOF-C433-8A

Applications:		•433 MHz ISM band
		•Metering, industrial / environmental monitoring
		•Remote asset monitoring

Features:		•Omnidirectional Radiation Pattern
		•UV resistant fiberglass housing
		•IP65 Waterproof
		•Can be divided into 2 parts for reducing shipping cost

Detail

Type	Omnidirectional Antenna
Model No.	SOF-C433-8A
ELECTRICAL
Frequency	433MHz
Bandwidth	14MHz
Horizontal Half-power Beam Width	360°
Vertical Half-power Beam Width	14°
Gain	8dBi
Polarization	Vertical
VSWR	<1.5
Radiation Properties	Omnidirectional
Power Handling	100W
Impedance	50 Ohms
Lightning Protection	DC Ground
MECHANICAL

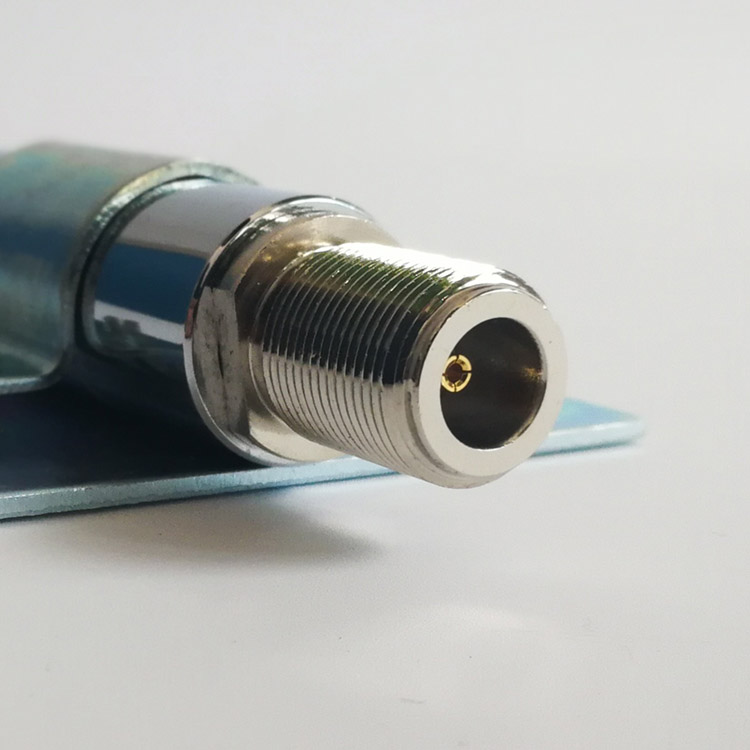

Input Connector Type	N Type Female
Length	2.2m
Antenna Weight	1.5kg
Radome Material	Fiberglass
Radome Color	Gray
Mount Style	Pole Mount
ENVIRONMENTAL
Operation Temperature	-40°C to 85°C
Rated Wind Velocity	Up to 200km/h
Remark：Can be divided into 2 parts
