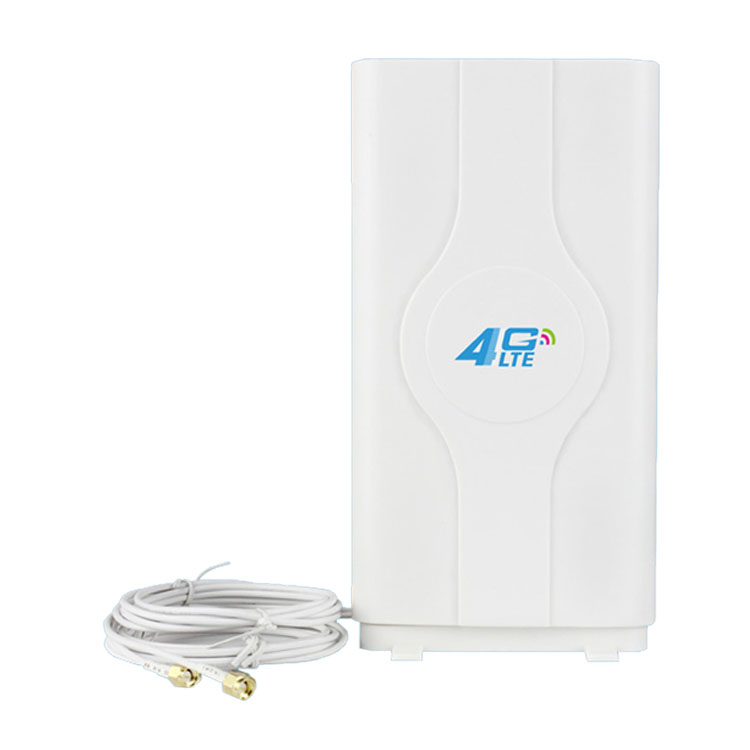

1700-2700MHz External MIMO antenna for 4G LTE router
Can be used forLTE / CDMA2000 / DCS / PCS / WCDMA /
UMTS / HSDPA / GPRS / EDGE / IMT
1700 to 2700MHz 4g MIMO router
Buy online
Detail
Frequency Range
1710~2690 MHz
Half-power beam width:
 H:65°        V:65°
Gain
2 x 9 dBi
Polarization
Vertical and Horizontal
Input Impedance
50 Ω
Maximum input power
50W
Isolation between ports
≥28dB
Input connector type
SMA/TS-9/CRC9
 Dimensions
225*130*30 mm
Antenna weight
0.35 kg
 Operating temperature
-40～60 °c
Cable length
2 meters or customized
Radome material
ABS
Color
White
